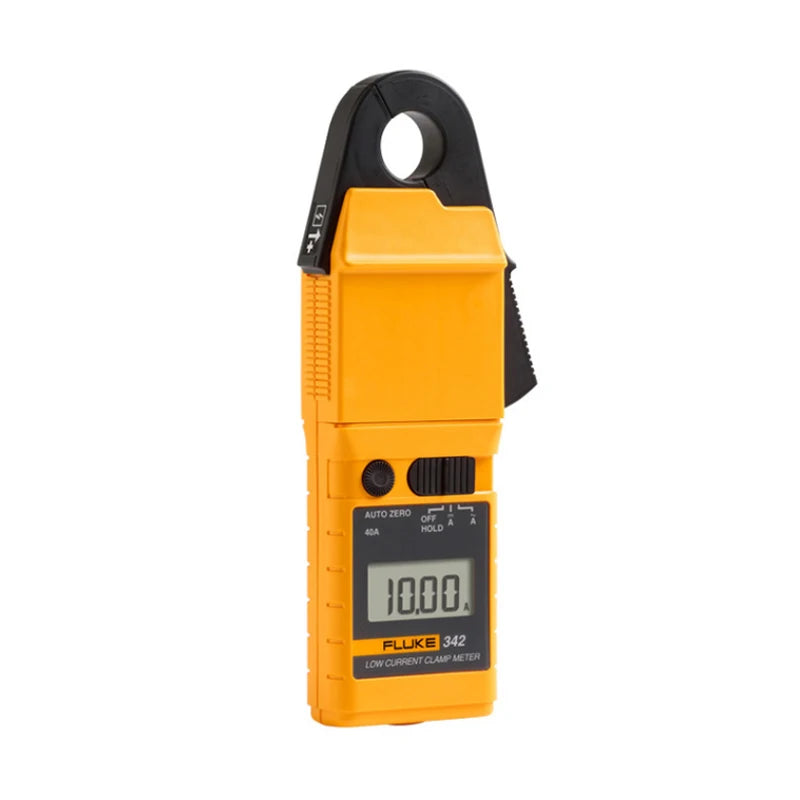

Fluke 342 Clamp Meter Digital True RMS AC / DC Low Current 40A/400A Multimeter
Fluke 342 Clamp Meter Digital True RMS AC / DC Low Current 40A/400A Multimeter
常规价格
¥11,411,680.00 CNY
常规价格
¥12,404,000.00 CNY
促销价
¥11,411,680.00 CNY
单价
/
单价
结账时计算的运费。
无法加载取货服务可用情况
Features:
The Fluke 342 Low Current Clamp Meter (the Product) is designed for
Reliable and accurate non-intrusive measurement of dc and ac currents.
Measurement features include:
• Non - intrusive ac and dc current measurement
• 1 mA resolution
• Regular responding
• Autoranging / Autozeroing
• Data Hold
• Low battery indicator
• Auto Power Off
Reliable and accurate non-intrusive measurement of dc and ac currents.
Measurement features include:
• Non - intrusive ac and dc current measurement
• 1 mA resolution
• Regular responding
• Autoranging / Autozeroing
• Data Hold
• Low battery indicator
• Auto Power Off
Specification:
|
Electrical parameters |
|
|
Measuring range |
40A dc or ac current peak |
|
Automatic range |
4A/40A |
|
resolution ratio |
range4A：1mA |
|
precision |
±（1.3%+5words） |
|
display words |
4000 words |
|
temperature coefficient |
Temperature is higher than 28 ° C or below 18 ° C, the additional 0.1 x test precision / ° C |
|
Frequency range |
Alternating current 40-400Hz |
|
Overload capacity |
150A |
|
Security level |
CAT III 300V |
|
General parameters |
|
|
operating temperature range (OTR) |
0°C-50°C |
|
power supply |
9V alkaline battery, NEDA 1604 or IEC 6LR61 |
|
Battery life |
15 hours in a row |
|
level of protection |
IP30 |
|
size |
184 × 71 × 31mm |
|
Jaw opening Angle |
20mm |
|
weight |
235g |
